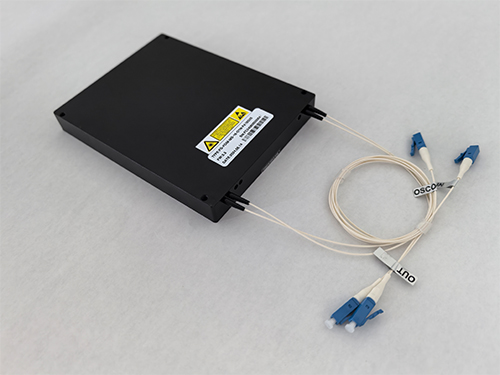

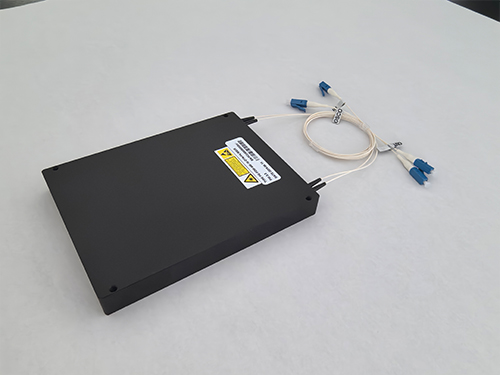

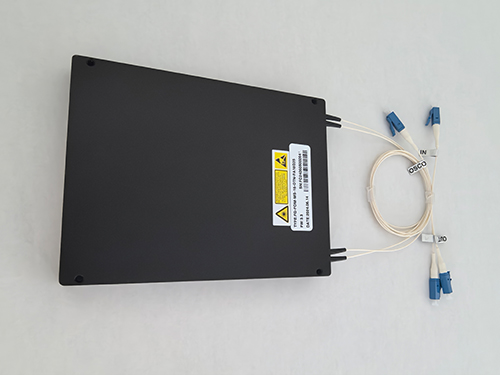

EDFA SPEC_V1.1(130X100)-

This document specifies the requirements of a DWDM C-band amplifier. The amplifier modules can be operated at constant gain (Automatic Gain Control AGC), constant output power (Automatic Power Control, APC). There are isolators at input and output port. Integrated VOA can be automatically adjusted to achieve smooth gain spectrum for different gain value. It can amplify the C-Band signal with or w/o middle stage access (MSA), which brings great flexibility for the network application. Optical supervisory channel (OSC) is optional function integrated in the module.

Inquire now

Categories

Hot Products

Product Detail

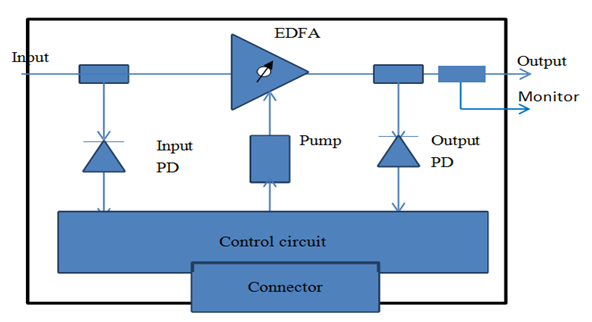

Single stage amplifier diagram:

Performance

Absolute maximum ratings

Parameter	Min	Max	Unit
Operating case temperature	-5	55	°C
Operating relative humidity	5	95	%
Storage Temperature	-40	75	°C
Storage relative humidity	5	95	%
Power consumption		20	W

Optical characters

Single stage amplifiers （VGA——Integrated VOA）

EX1: OBA20/G15V

Item	Min.	Typ.	Max.	Unit	Note
Operation wavelength	1529		1561	nm	40 or 48 ch is Optional
Operation wavelength	1528		1568	nm	40 or 48 ch is Optional
Input Power Range	-22	5	10	dBm
Gain range	10	15	20	dB	Can be set
Output Power Range	-7		20.5	dBm
Gain Flatness		1	1.5	dB
Noise Figure			8	dB	@rated Gain
Loss alarm Threshold	-23			dBm	Up value can be adjusted

EX2:OPA16/G20V

Item	Min.	Typ.	Max.	Unit	Note
Operation wavelength	1529		1561	nm	40 or 48 ch is Optional
Operation wavelength	1528		1568	nm	40 or 48 ch is Optional
Input Power Range	-31	-4	1	dBm
Gain range	15	20	25	dB	Can be set
Output Power Range	-11		16.5	dBm
Gain Flatness		1	1.5	dB
Noise Figure			6	dB	@rated Gain
Loss alarm Threshold	-32			dBm	Up value can be adjusted

EX3: OPA16/G25V

Item	Min.	Typ.	Max.	Unit	Note
Operation wavelength	1529		1561	nm	40 or 48 ch is Optional
Operation wavelength	1528		1568	nm	40 or 48 ch is Optional
Input Power Range	-36	-9	-4	dBm
Gain range	20	25	30	dB	Can be set
Output Power Range	-7		16.5	dBm
Gain Flatness		1	1.5	dB
Noise Figure			6	dB	@rated Gain
Loss alarm Threshold	-37			dBm	Up value can be adjusted

EX4: OPA20/G30V

Item	Min.	Typ.	Max.	Unit	Note
Operation wavelength	1529		1561	nm	40 or 48 ch is Optional
Operation wavelength	1528		1568	nm	40 or 48 ch is Optional
Input Power Range	-32	-10	-5	dBm
Gain range	25	30	35	dB	Can be set
Output Power Range	-7		20.5	dBm
Gain Flatness		1	1.5	dB
Noise Figure			6	dB	@rated Gain
Loss alarm Threshold	-33			dBm	Up value can be adjusted

EX5: OLA20/G20V

Item	Min.	Typ.	Max.	Unit	Note
Operation wavelength	1529		1561	nm	40 or 48 ch is Optional
Operation wavelength	1528		1568	nm	40 or 48 ch is Optional
Input Power Range	-27	0	5	dBm
Gain range	15	20	25	dB	Can be set
Output Power Range	-7		20.5	dBm
Gain Flatness		1	1.5	dB
Noise Figure			6.5	dB	@rated Gain
Loss alarm Threshold	-28			dBm	Up value can be adjusted

EX6: OLA20/G25V

Item	Min.	Typ.	Max.	Unit	Note
Operation wavelength	1529		1561	nm	40 or 48 ch is Optional
Operation wavelength	1528		1568	nm	40 or 48 ch is Optional
Input Power Range	-32	-5	0	dBm
Gain range	20	25	30	dB	Can be set
Output Power Range	-7		20.5	dBm
Gain Flatness		1	1.5	dB
Noise Figure			6	dB	@rated Gain
Loss alarm Threshold	-33			dBm	Up value can be adjusted

Fixed Gain amplifier （FGA）

EX1: OBA20/G16

Item	Min.	Typ.	Max.	Unit	Note
Operation wavelength	1529		1561	nm	40 or 48 ch is Optional
Operation wavelength	1528		1568	nm	40 or 48 ch is Optional
Input Power Range	-25	4	7	dBm
Gain range	13	16	19	dB	Can be set
Output Power Range	-9	20	20.5	dBm
Gain Flatness		1	1.5	dB	@rated Gain
Noise Figure			6	dB	@rated Gain
Loss alarm Threshold	-26			dBm	Up value can be adjusted

EX2: OBA20/G12

Item	Min.	Typ.	Max.	Unit	Note
Operation wavelength	1529		1561	nm	40 or 48 ch is Optional
Operation wavelength	1528		1568	nm	40 or 48 ch is Optional
Input Power Range	-21	8	11	dBm
Gain range	9	12	15	dB	Can be set
Output Power Range	-9	20	20.5	dBm
Gain Flatness		1	1.5	dB	@rated Gain
Noise Figure			6.5	dB	@rated Gain
Loss alarm Threshold	-22			dBm	Up value can be adjusted

EX3: OPA16/G20

Item	Min.	Typ.	Max.	Unit	Note
Operation wavelength	1529		1561	nm	40 or 48 ch is Optional
Operation wavelength	1528		1568	nm	40 or 48 ch is Optional
Input Power Range	-33	-4	-1	dBm
Gain range	17	20	23	dB	Can be set
Output Power Range	-13	16	16.5	dBm
Gain Flatness		1	1.5	dB	@rated Gain
Noise Figure			5.5	dB	@rated Gain
Loss alarm Threshold	-34			dBm	Up value can be adjusted

EX4: OPA16/G25

Item	Min.	Typ.	Max.	Unit	Note
Operation wavelength	1529		1561	nm	40 or 48 ch is Optional
Operation wavelength	1528		1568	nm	40 or 48 ch is Optional
Input Power Range	-38	-9	-6	dBm
Gain range	22	25	28	dB	Can be set
Output Power Range	-13	16	16.5	dBm
Gain Flatness		1	1.5	dB	@rated Gain
Noise Figure			5.5	dB	@rated Gain
Loss alarm Threshold	-39			dBm	Up value can be adjusted

EX5: OPA16/G30

Item	Min.	Typ.	Max.	Unit	Note
Operation wavelength	1529		1561	nm	40 or 48 ch is Optional
Operation wavelength	1528		1568	nm	40 or 48 ch is Optional
Input Power Range	-41	-14	-11	dBm
Gain range	27	30	33	dB	Can be set
Output Power Range	-12	16	16.5	dBm
Gain Flatness		1	1.5	dB	@rated Gain
Noise Figure			5.5	dB	@rated Gain
Loss alarm Threshold	-42			dBm	Up value can be adjusted

General specification

Optical general specification

Item	Min	Typ	Max	Units	Note
Operating wavelength range	1528		1568	nm
Polarization dependence gain			0.3	dB
Polarization mode dispersion			0.5	ps
Return Loss	45			dB	UPC connector
In/out monitor accuracy		±0.5		dB
stability		±0.5		dB

OSC specification (If there is no OSC channel, skip this chapter)

Optical supervisor channel is optional, Add/Drop outside, it means drop from PA input and add at BA output. OSC channel wavelength can be customized, center wavelength such as 1490, 1510, 1625nm.

Item	Min.	Typ.	Max.	Unit	Note
OSC channel wavelength	1505	1511	1517	nm	optional
OSC insertion loss			1	dB

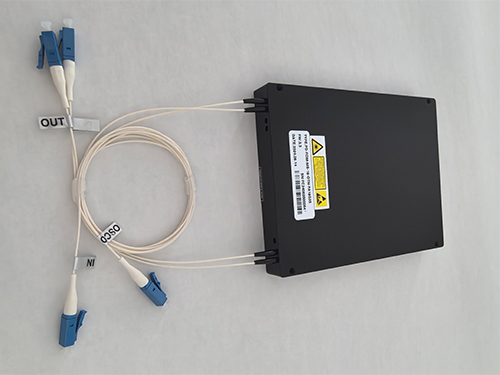

Pigtail label

EX1: Single stage gain amplifier

Function	connector	Length(cm)	description
In	LC/UPC	50±5	900um,tight,white
Out	LC/UPC	50±5	900um,tight,white
MON	LC/UPC	50±5	900um,tight,white
OSCI	LC/UPC	50±5	900um,tight,white
OSCO	LC/UPC	50±5	900um,tight,white

Electrical interface

EDFA module electrical connector is 50 pin male, 2.00 mm Pitch

PIN	Description	PIN	Description
1	+5VDC	2	+5VDC
3	+5VDC	4	+5VDC
5	+5VDC	6	+5VDC
7	GND	8	GND
9	GND	10	GND
11	Reserve	12	Reserve
13	GND	14	Reset Input
15	Serial Input (TTL)	16	Serial Output (TTL)
17	Pump Current Alarm(Active High)	18	Stage1 Input Los Alarm(Active High)
19	GND	20	GND
21	Reserve	22	Reserve
23	Reserve	24	Reserve
25	GND	26	Reserve
27	Stage2 Input Los Alarm(Active High)	28	GND
29	Stage2 Output/Gain Alarm(Active High)	30	GND
31	GND	32	GND
33	Case Temperature Alarm(Active High)	34	Stage1 Output/Gain Alarm(Active High)
35	Pump Temperature Alarm(Active High)	36	Reserve
37	NC	38	NC
39	Reserve	40	Reserve
41	GND	42	GND
43	GND	44	GND
45	+5VDC	46	+5VDC
47	+5VDC	48	+5VDC
49	+5VDC	50	+5VDC

Note：Alarm active is high 3.3V

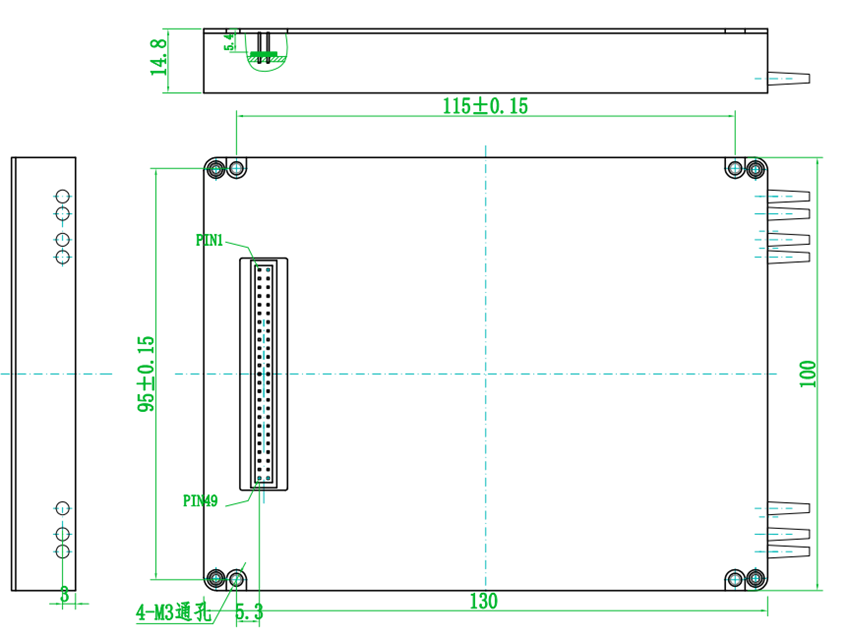

Dimension

unit: mm, 4-M3 screw hole (8mm depth) for mounting

COMMANDS

Baud Rate 57600
